產品：K54/A
產品特性:
■特點：
☆與主軸直接連接，剛性好，精度高。
☆防塵效果好，使用壽命長。
☆適用于盤類零件的精加工，也可用于毛坯件加工。
■Specificity:
☆This series chucks can be directly connected to the spindle noses of the machne tools, with nice rigidity and high accuracy.
☆The chucks are effectively dust-proof and have a long-term durability.
☆The chucks are suitable for precision machining of plate-shaped workpieces as well as rough surface ones.
產品詳情

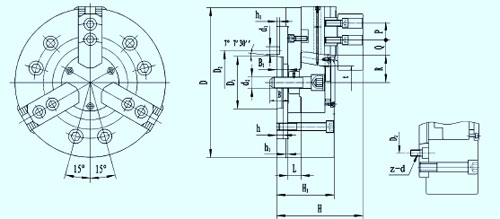

■尺寸參數 Dimension Parameters
|
規格D
Size
|
主軸頭號
Short
Taper
No.
|
D1
|
D2
|
H1
|
H
|
h
|
h1
|
h2
|
B
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B1max
|
B1min
|
d1
|
d2
|
z-d
|
|
315
|
8
|
139.719
|
174.1
|
143
|
210
|
18
|
5
|
8
|
48
|
32
|
53
|
26
|
62.7
|
57.5
|
38
|
8
|
24.2
|
M24
|
6-M20
|
|
400
|
8
|
139.719
|
174.1
|
152
|
228
|
18
|
6
|
8
|
50
|
45
|
70
|
30
|
73
|
67
|
32
|
-3
|
24.2
|
M30
|
6-M16
|
■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
315
|
30
|
10.4
|
53
|
156
|
3300
|
40-280(315)
|
110(60)-280(315)
|
P22 160
|
61
|
|
400
|
35
|
12.4
|
85
|
250
|
2800
|
40-370(400)
|
150(60)-370(400)
|
P22 200
|
138
|
產品備注
※表中()數值適用于軟卡爪卡盤。
※The () on the above table is for soft jaw chucks.
|
