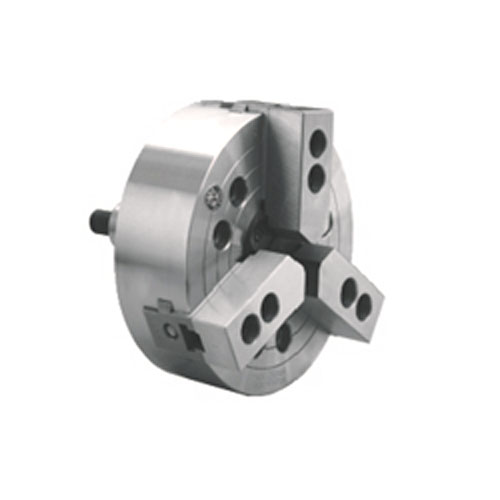

產品：KT54/A
產品特性:
■特點：
☆符合日本標準。
☆與機床主軸直接連接，剛性好，精度高。
☆適用于盤類零件的精加工，還可夾持較小棒料。
☆配帶軟卡爪。
■Specificity:
☆Conform to Japanese standard.
☆This series chucks can be directly connected to the spindle noses of the machine tools ,with nice rigidity and high accuracy.
☆The chucks are suitable for precision machining of plate shaped workpieces, also can clamp smaller rod materials.
☆Mached with the soft jaws.
產品詳情

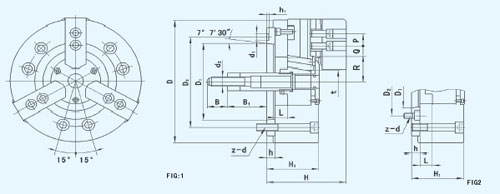

■尺寸參數(shù) Dimension Parameters
|
規(guī)格
Size
|
主軸頭號
Short taper No.
|
D
|
D1
|
D3
|
H1
|
H
|
h
|
h1
|
B
|
p
|
Q
|
R
|
B1
|
d1
|
d2
|
z-d
|
|
max
|
min
|
max
|
min
|
max
|
min
|
|
160
|
5
|
165
|
82.563
|
104.8
|
84
|
119
|
15
|
6.5
|
36
|
20
|
13.75
|
7.75
|
37.8
|
33.55
|
86.5
|
66.5
|
16.3
|
M16×2
|
6-M10
|
|
200
|
5
|
210
|
82.563
|
104.8
|
103
|
145
|
23
|
6.5
|
36
|
25
|
22.25
|
11.75
|
46.3
|
41.9
|
104
|
83
|
16.3
|
M20×2.5
|
6-M10
|
|
200
|
6
|
210
|
106.375
|
133.4
|
97
|
139
|
17
|
6.5
|
36
|
25
|
22.25
|
11.75
|
46.3
|
41.9
|
110
|
89
|
19.5
|
M20×2.5
|
6-M12
|
|
250
|
6
|
254
|
106.375
|
133.4
|
104
|
150
|
20
|
6.5
|
36
|
30
|
30.75
|
11.25
|
51.1
|
46.7
|
114
|
89
|
19.5
|
M20×2.5
|
6-M12
|
|
250
|
8
|
254
|
139.719
|
171.4
|
102
|
148
|
18
|
8
|
36
|
30
|
30.75
|
11.25
|
51.1
|
46.7
|
140
|
115
|
24.2
|
M20×2.5
|
6-M16
|
|
315
|
6
|
304
|
106.375
|
133.4129
|
129
|
183
|
20
|
6.5
|
36
|
30
|
48.75
|
12.75
|
61
|
55.75
|
119
|
89
|
19.5
|
M20×2.5
|
6-M12
|
|
315
|
8
|
304
|
139.719
|
171.4
|
118
|
172
|
18
|
8
|
36
|
30
|
48.75
|
12.75
|
61
|
55.75
|
145
|
115
|
24.2
|
M20×2.5
|
6-M16
|
■性能參數(shù) Characteristic Parameters
|
規(guī)格
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
160
|
20
|
8.5
|
18
|
52.5
|
5270
|
19-165
|
30-165
|
P24 105
P22 100
|
14
|
|
200
|
21
|
8.8
|
25
|
75
|
4760
|
23-210
|
36-210
|
P24 P22 125
|
27
|
|
250
|
25
|
8.8
|
29
|
108
|
4010
|
24-254
|
45-254
|
P24 1P22 125
|
40
|
|
315
|
30
|
10.5
|
41
|
156
|
3380
|
26-304
|
60-304
|
P24 P22 160
|
63
|
產品備注
注：KT54200/A25，KT54250/A26。KT54315/A26參照圖2。
Note: KT54200/A25，KT54250/A26，KT54315/A26 are referred to in Fig2.
|
